With more than 50 years of experience in bulk handling, Tratec Solutions has developed its belt conveyors to a very high standard in terms of capacity and durability.

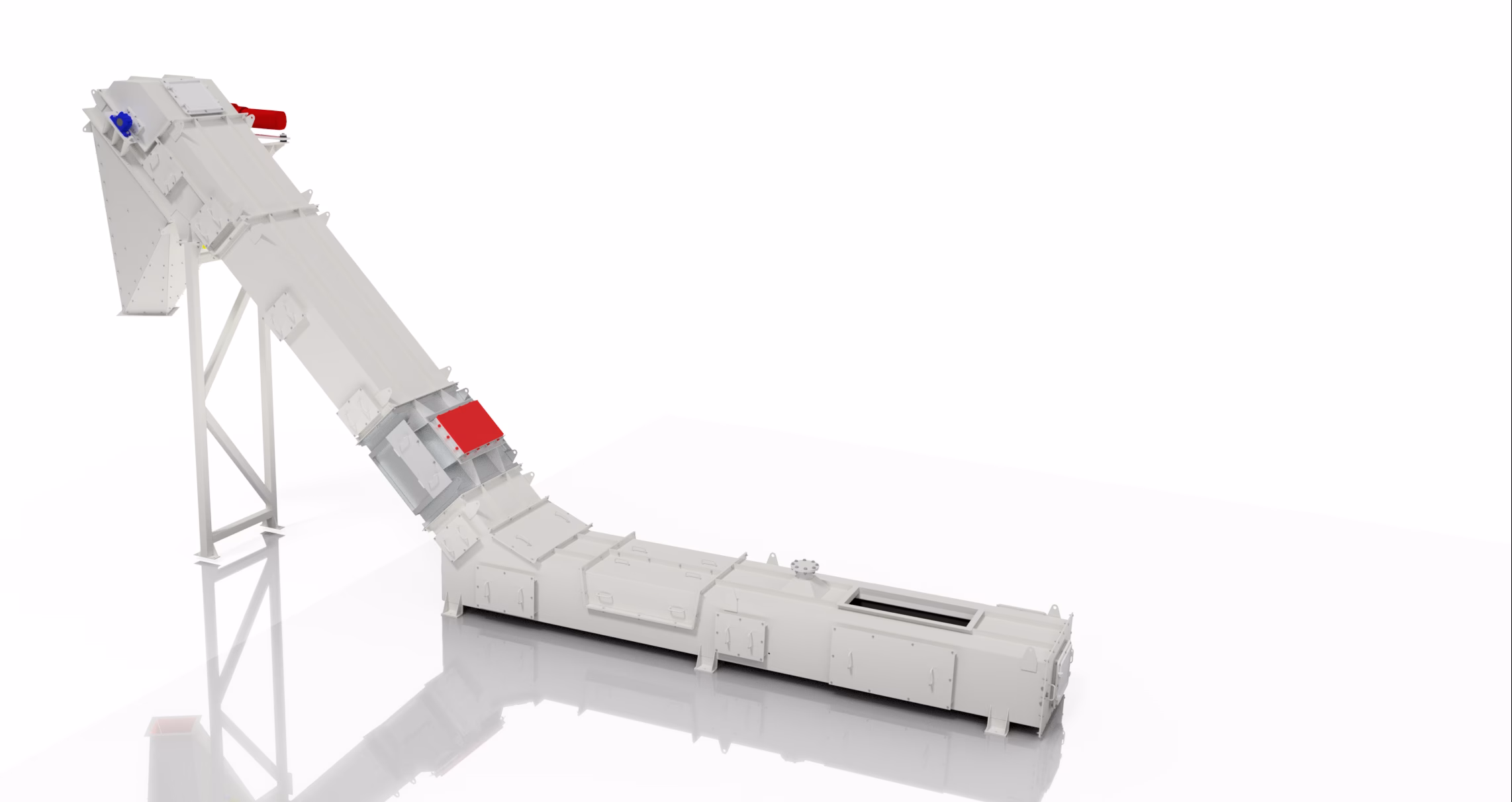

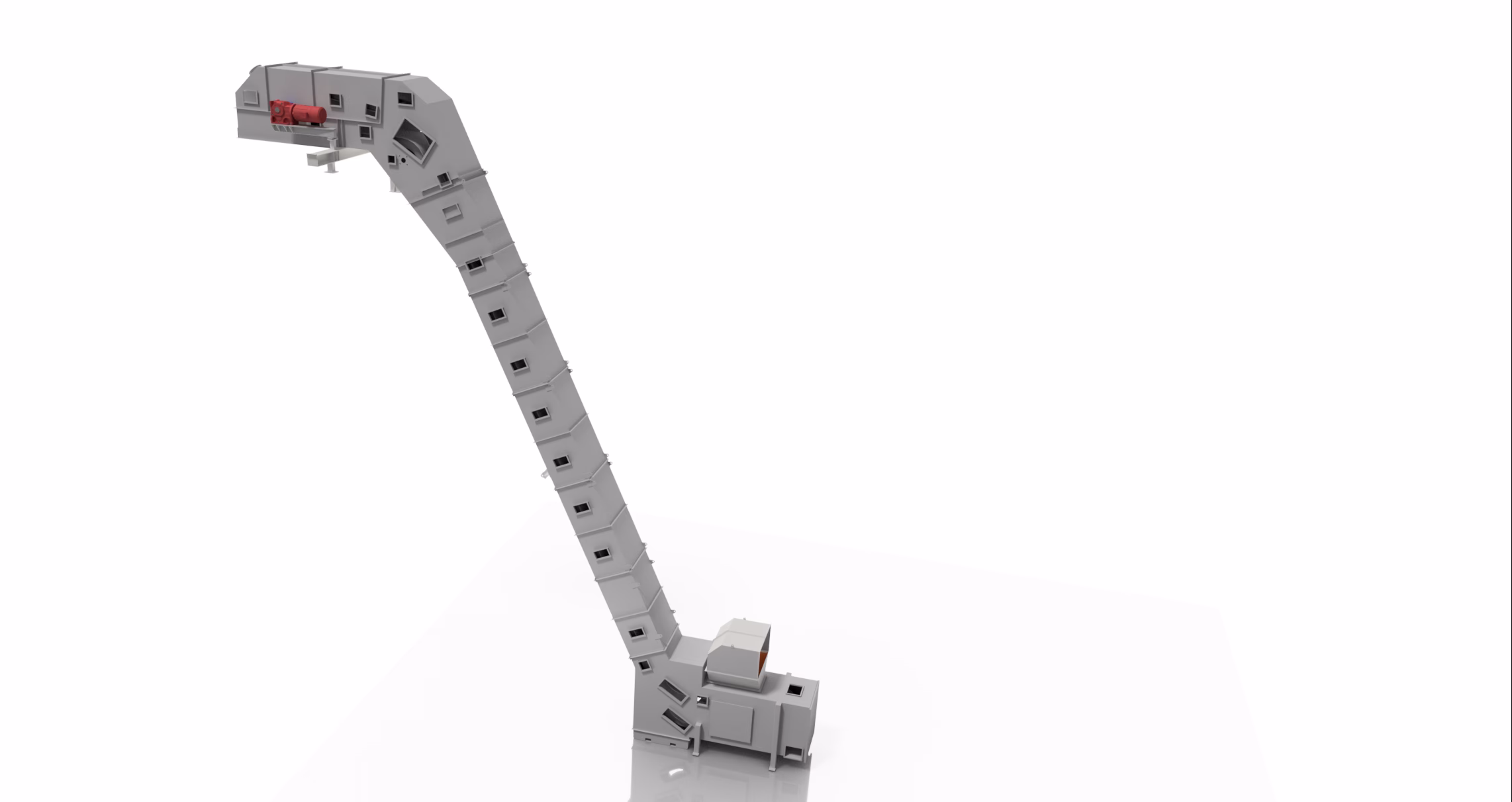

The conveyors with carrier belt are specially designed for ascending transport up to 90°. A carrier belt is used (corrugated type) made with a transversely rigid flat belt as a base. It has vulcanised on reinforced sidewalls and rubber carriers. These prevent material from falling backwards at high incline angles. The carriers are available in different sizes, shapes and assemblies, allowing the belt to run in either horizontal, vertical or ascending position.

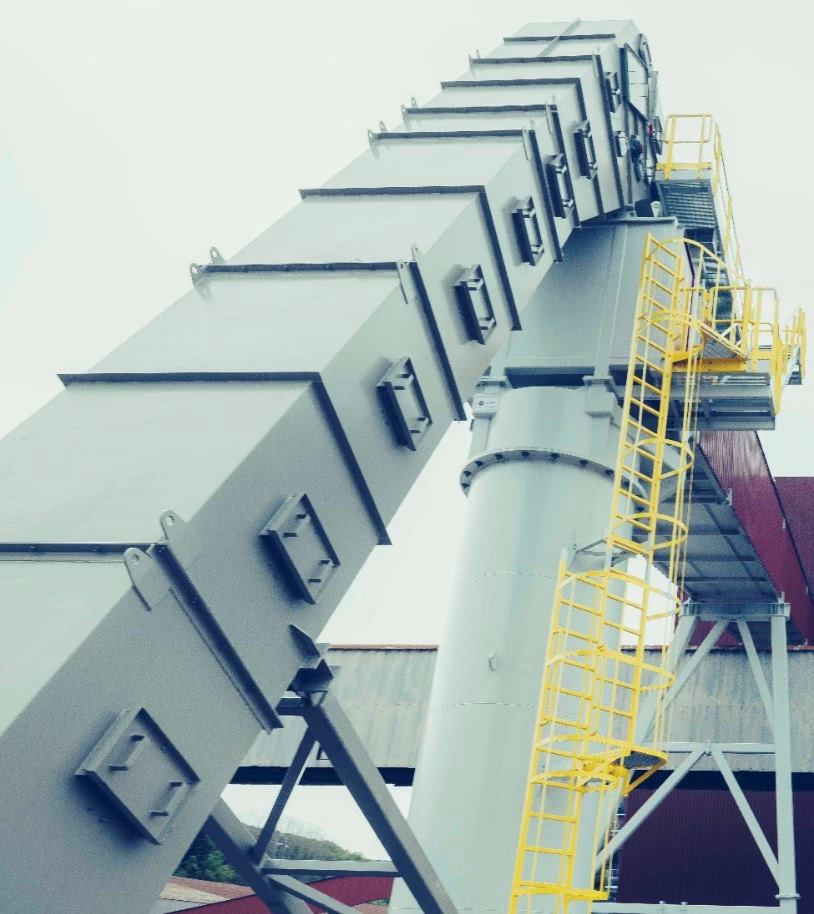

The entire conveyor is enclosed to prevent dust from escaping into the environment, which also makes it waterproof and suitable for outdoor use.

• The drums have diameters up to 1000 mm.
• The drive drum is rubberised and equipped with well-dimensioned foot bearings for heavy loads.
• The return drum is equipped with well-dimensioned bearings and the shaft is attached to manual tightening mechanisms.
• The carrier rollers have diameters up to 219 mm, are self-lubricating and have bearings with sealed gaskets.
• Cushioning elements and shock elements can be supplied in loading zones.
• The inlet chute is mounted in the loading zone. It is equipped with Hardox wear plates for better wear resistance.
• Optional extras: Support, walkways, service platforms, emergency stop system, speed guard, and skew guard.
• Surface treatment: Main parts sandblasted, primed and painted according to Tratec Solution standard. Bolts, brackets and smaller parts are galvanised.
